VCDS aanpassingen specifiek voor de Volkswagen Polo  chassiscode [6R]
6N: 94-02  9N: 02-09  6R: 2009-2015  6C: 15-17  AW: 17-nu    Let op het verschil tussen modeljaar en bouwjaar.

Reken je niet te vroeg rijk. De mogelijkheid moet wel aanwezig zijn in de regelmodule die in jouw auto zit.
Let op:  niet alle mogelijkheden zijn in elk land wettelijk toegestaan.
Let op:  voor de betreffende Regelmodule moet de juiste Labelfile aanwezig zijn.

Doe jezelf  (en Ross-Tech en Priemus en rCs en mij)  een plezier en lees dit even.
Het kan veel tijd en ergernis voorkomen, omdat er vaak vergissingen worden gemaakt bij dit soort aanpassingen.


klik

Deze pagina heeft drie delen:      het gebruikelijke     printscreens van de ecu     lijst van alle Bytes en Bits

Achterklep, soft-touch (de)-activeren

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

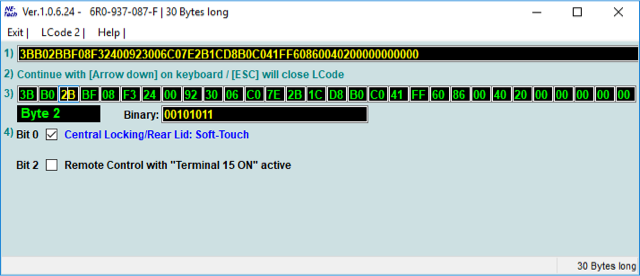

  3. [Byte 02]  [Bit 0]  (de-)activeren

Achterklep, sluiten met Central Locking

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 01]  [Bit 7]  (de-)activeren

Achterruit

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 15]  [Bit 7]  verwarmde achterruit  ge(de)ïnstalleerd

Afstandsbediening

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 07]  [Bit 3]  afstands bediening ge(de)ïnstalleerd

Anti Diefstal systeem

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

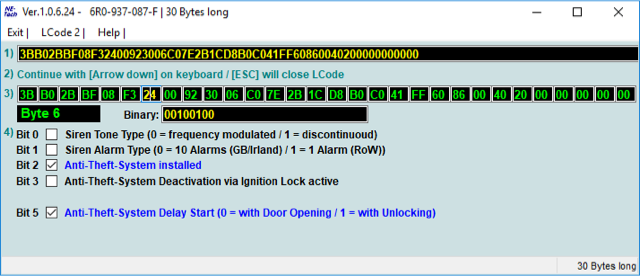

  3. [Byte 06]  [Bit 0]  geluid van de sirene  0=frequency modulated, 1=discontinuoud
  4. [Byte 06]  [Bit 1]  soort alarm  0=10x (GB-Ierland), 1=Rest van de wereld
  5. [Byte 06]  [Bit 2]  anti diefstal systeem  ge(de)installeerd
  6. [Byte 06]  [Bit 3]  anti diefstal systeem ge(de)activeerd op contact aan is
  7. [Byte 06]  [Bit 5]  anti diefstal systeem delay start  0=met openen deuren, 1=met ontgrendelen
  8. [Byte 08]  [Bit 1]  inclinatie (hellingshoek) sensor (de-)activeren
  9. [Byte 08]  [Bit 4]  interieurbewaking ge(de)ïnstalleerd
  10. [Byte 08]  [Bit 7]  sirene ge(de)ïnstalleerd

Anti-carjack  Auto-Lock
vergrendelen deuren bij >15kmh

  1. [09-Boordnet]
  2. [Hercoderen-07]
  3. [Byte 00]  [Bit 4]  (de-)activeren

Anti-carjack  Auto-UnLock
deuren ontgrendelen als sleutel eruit

  1. [09-Boordnet]
  2. [Hercoderen-07]
  3. [Byte 00]  [Bit 3]  (de-)activeren

Autobaan knipperen
Comfort Turn Signals

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 12]  [Bit 5]  autobaan knipperen  ge(de)activeerd

Binnenverlichting

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 12]  [Bit 2]  Interior Light after Ingnition Key removal  active
  4. [Byte 13]  [Bit 5]  Binnenverlichting aan met bediening achterklep  active

Bochtenverlichting
turnlights / cornering lights / abbiegelicht

Werkt niet bij een Cross Polo uit 2010.

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 12]  [Bit 6]  bochtenverlichting met mistlampen  (de-)activeren
  4. [Byte 21]  [Bit 2]  bochtenverlichting met knipperlichten  (de)activeren

Buitenspiegels

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 15]  [Bit 6]  verwarmde buitenspiegels  ge(de)ïnstalleerd

Buitenspiegels inklappen

Zie deze link

Centraal vergrendelen ge(de)installeerd

  1. [09-Boordnet]
  2. [Hercoderen-07]
  3. [Byte 00]  [Bit 5]  (de-)activeren

Centraal Vergrendelen na 30 seconden inactiviteit

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 04]  [Bit 5]  (de)-activeren

Comfort Function active

  1. [17-Instrumenten]
  2. [Hercoderen-07] longcoding
  3. [Byte 03]  [Bit 7]  (de)-activeren

Coming Home CH

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 10]  [Bit 1]  Leaving Home
  4. [Byte 10]  [Bit 2]  Coming Home
  5. [Byte 13]  [Bit 6]  0=mistlampen, 1=dimlichten

Coming Home / Leaving Home, tijdsduur

Werkt niet bij een Cross Polo uit 2010.

  1. [09-Boordnet]
  2. [Aanpassen-10]
  3. [Kanaal 47]:  tijdsduur naar wens aanpassen (Coming Home)
  4. [Kanaal 48]:  tijdsduur naar wens aanpassen (Leaving Home)

Dagrijverlichting

Werkt niet bij een Cross Polo uit 2010.

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

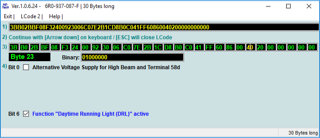

  3. [Byte 23]  [Bit 6]  Funktie 'Dagrijverlichting'  (de-)activeren

Dagrijverlichting DRL

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 12]  [Bit 1]  dagrijverlichting aanpasbaar (met de hand OF op het instrumentenpaneel

Dauer Fahr Licht (DFL) uitzetten

Het Dauer Fahr Licht (DFL) laat alle lampen, voor en achter, branden als je de auto op contact zet, ook al staat de lichtschakelaar op 0. Om deze optie uit te zetten moet je het volgende doen:

  1. met de lichtschakelaar in stand 0 druk de draaiknop in en draai hem 1 stand naar rechts. Dan kan je de lichtschakelaar uitnemen en weer in stand 0 draaien
  2. verwijder van de connector draad 3 TFL (gedimt groot licht voor) en draad 6 58B (kentekenverlichting achter)
  3. sluit VCDS aan
  4. [09-Boordnet]
  5. [Hercoderen-07] longcoding
  6. [Byte 12]  [Bit 0]  uitzetten ('Parking Lights ON with Terminal 15 ON')
  7. Save
  8. de verlichting rondom blijft uit met de licht schakelaar op stand 0 en het contact aan

Deuren ver- / ontgrendelen bevestigen

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

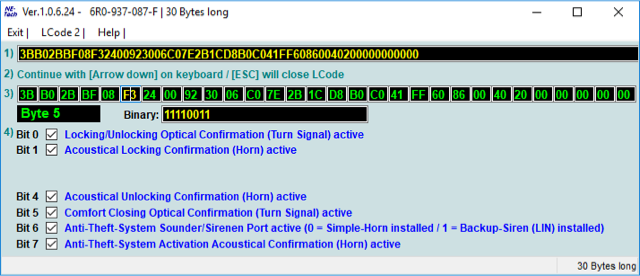

  3. [Byte 05]  [Bit ?]  ver- en ontgrendelen bevestigen met knipperlichten  (de-)activeren
  4. [Byte 05]  [Bit 1]  vergrendelen bevestigen met claxon  (de-)activeren
  5. [Byte 05]  [Bit 3]  verkorte akoestische bevestiging (40ms - 20ms)  (de-)activeren
  6. [Byte 05]  [Bit 4]  ontgrendelen bevestigen met claxon  (de-)activeren
  7. [Byte 05]  [Bit 5]  comfort sluiten bevestingen met knipperlichten  (de-)activeren
  8. [Byte 05]  [Bit 6]  anti-diefstal geluid  0= eenvoudig geluid  1= geluid via backup-hoorn
  9. [Byte 05]  [Bit 7]  Aoestische bevestiging alarm af- fabriek  (de-)activeren
  10. [Byte 06]  [Bit 1] configureren:
      0= 10x alarm (UK en Ierland)
      1= 1x alarm (rest van de wereld)

Energy managment

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

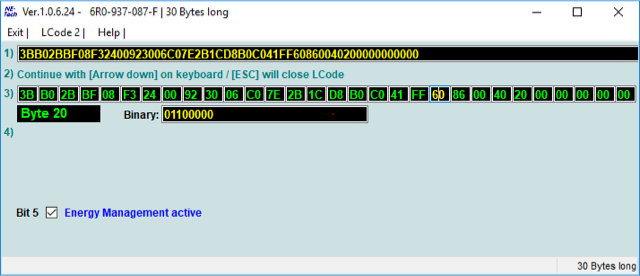

  3. [Byte 20]  [Bit 5]  Energy Managment  (de)activeren

Helling-assistentie
Hill Hold, Berganfahrthilfe, Berganfahrassistenten
Op een helling: rem totdat de auto stilstaat. Met Helling Assistentie actief kun je het rempedaal loslaten en de auto zal enkele seconden geremd blijven staan. Zodra het gaspedaal wordt ingedrukt laat de rem los.

  1. [03-ABS Systeem]
  2. [Aanpassen-10]
  3. [Kanaal 58]
  4. 0 = kort;  1 = middel,  2 = lang

Lamp / Licht diagnose

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

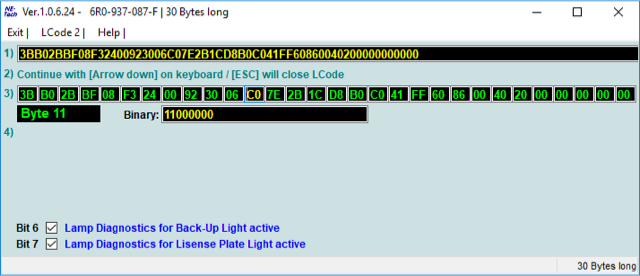

  3. [Byte 11]  [Bit 6]  Lamp Diagnostics for Backup-Light  (de)activeren
  4. [Byte 11]  [Bit 7]  Lamp Diagnostics for Lisense Plate (kentekenplaat, nummerplaat)  (de)activeren

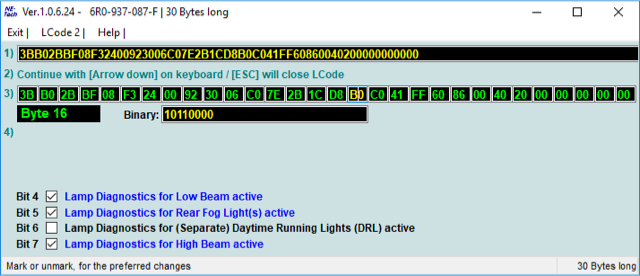

  5. [Byte 16]  [Bit 4]  Lamp Diagnostics for dimlicht  (de)activeren
  6. [Byte 16]  [Bit 5]  Lamp Diagnostics for mistlicht achter  (de)activeren
  7. [Byte 16]  [Bit 6]  Lamp Diagnostics for separate dagrijverlichting  (de)activeren
  8. [Byte 16]  [Bit 7]  Lamp Diagnostics for grootlicht  (de)activeren

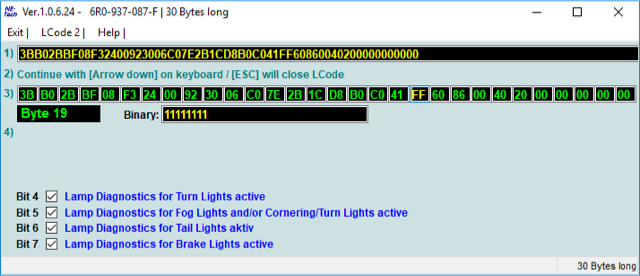

  9. [Byte 19]  [Bit 4]  Lamp Diagnostics for knipperlichten  (de)activeren
  10. [Byte 19]  [Bit 5]  Lamp Diagnostics for mistlicht en/of bochtenverlichting  (de)activeren
  11. [Byte 19]  [Bit 6]  Lamp Diagnostics for achterlichten  (de)activeren
  12. [Byte 19]  [Bit 7]  Lamp Diagnostics for remlichten  (de)activeren

Leaving Home LH

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 10]  [Bit 1]  Leaving Home
  4. [Byte 10]  [Bit 2]  Coming Home
  5. [Byte 13]  [Bit 6]  0=mistlampen, 1=dimlichten

Licht-sensor

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 13]  [Bit 7]  Funktie Lichtsensor  active

Mistlampen

Werkt niet bij een Cross Polo uit 2010.

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

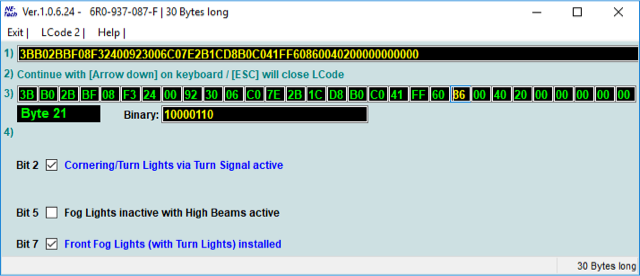

  3. [Byte 21]  [Bit 5]  geen mistlampen als grootlicht aan is  (de-)activeren
  4. [Byte 21]  [Bit 7]  mistlampen voor  ge(de)ïnstalleerd

Multi-Functie-Display, vrijschakelen

  1. [17-Instrumenten]
  2. [Hercoderen-07] longcoding
  3. [Byte 01]  [Bit 3]  (de-)activeren

Noodstop

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 12]  [Bit 3]  knipperlichten  ge(de)activeerd
  4. [Byte 12]  [Bit 4]  knipperend remlicht  ge(de)activeerd

Parkeer verlichting

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 13]  [Bit 0]  Parkeerverlichting alleen aan als contact aan  active
  4. [Byte 13]  [Bit 1]  Funktie Parkeerverlichting  active

Ramen, powerwindows ge(de)ïnstalleerd

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

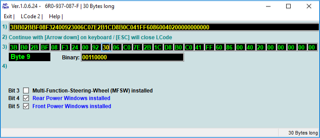

  3. [Byte 09]  [Bit 4]  power-windows achter  ge(de)ïnstalleerd
  4. [Byte 09]  [Bit 5]  power-windows voor  ge(de)ïnstalleerd

Ramen, comfort openen-sluiten

  1. [17-Instrumenten]
  2. [Hercoderen-07] longcoding

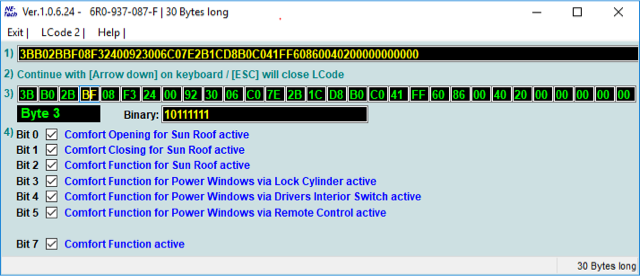

  3. [Byte 03]  [Bit 3]  Comfort Function for Power Windows via Lock Cilinderactive
  4. [Byte 03]  [Bit 4]  Comfort Function for Power Windows via Drivers Interior Switch
  5. [Byte 03]  [Bit 5]  Comfort Function for Power Windows via Remote Control active

Regensensor ge(de)ïnstalleerd

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 08]  [Bit 0]  (de-)activeren

Regensensor function

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 14]  [Bit 1]  regensensor funktie  ge(de)activeerd

Regen sluiten
als het gaat regenen worden automatisch de ramen gesloten

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 04]  [Bit 6]  (de-)activeren

Remlichten

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 13]  [Bit 3]  activering remlichten vis Body Control Motion (BCM)  active

Ruitenwissers

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

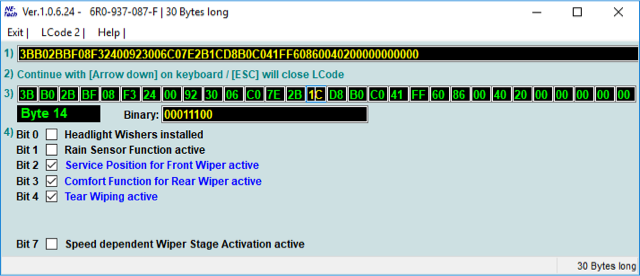

  3. [Byte 14]  [Bit 2]  service-positie ruitenwissers voorkant  ge(de)activeerd
  4. [Byte 14]  [Bit 3]  comfort funktie ruitenwisser achter  ge(de)activeerd
  5. [Byte 14]  [Bit 4]  tranen wissen  ge(de)activeerd

Selectieve deurvergrendeling
1x drukken op afstandsbediening: alleen bestuurdersdeur opent
2x drukken op afstandsbediening: alle deuren openen

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 00]  [Bit 0]  (de-)activeren

Service-interval

Vanaf versie 7.04 kan VCDS dat zelf allemaal uitzoeken en resetten ("SRI Reset"), mits in [17-Instrumenten] - [Meetwaardeblokken-08] de juiste labelfile aanwezig is

Schuifdeur

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding

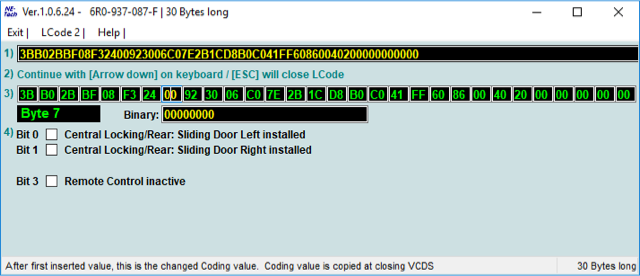

  3. [Byte 07]  [Bit 0]  central locking achter: schuifdeur links  ge(de)ïnstalleerd
  4. [Byte 07]  [Bit 1]  central locking achter: schuifdeur rechts  ge(de)ïnstalleerd

Spiegelverwarming
aan als achterruitverwarming aan

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 15]  [Bit 3]  spiegelverwarming aan als achterruitverwarming aan  ge(de)activeerd

Stuur, multifunction
MFSW

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 09]  [Bit 3]  multi-funktie stuur  ge(de)ïnstalleerd

Tranen wissen
5 sec. na uitzetten ruitenwissers wordt er nog 1x gewist

voor-ruitenwissers

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 14]  [Bit 4]  (de-)activeren

achter-ruitenwisser

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 14]  [Bit 3]  (de-)activeren

Veiligheidsgordel
waarschuwing (de-)activeren

  1. [17-Instrumenten]
  2. [Hercoderen-07] longcoding
  3. [Byte 01]  [Bit 1]  (de-)activeren

Voorruit

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 15]  [Bit 5]  verwarmde voorruit  ge(de)ïnstalleerd

Wis-was koplampen

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 14]  [Bit 0]  Headlight Washers  ge(de)activeerd

Zonnedak, comfort openen-sluiten

  1. [09-Boordnet]
  2. [Hercoderen-07] longcoding
  3. [Byte 03]  [Bit 0]  Comfort Opening for Sunroof  active
  4. [Byte 03]  [Bit 1]  Comfort Closing for Sunroof  active
  5. [Byte 03]  [Bit 2]  Comfort Function  active




























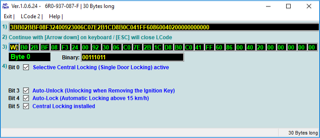

Byte 00 Bit 0   Selective Central Locking (Single Door Locking) active
Byte 00 Bit 1   Central Locking WITHOUT SAFE-Function (central locking WITHOUT SAFE function installed)
Byte 00 Bit 2   Central Locking 2-motor-locks installed (central locking 2-motor-locks installed)
Byte 00 Bit 3   Auto Unlock (Unlocking when Removing the Ignition Key)
Byte 00 Bit 4   Auto-Lock (Automatic Locking above 15 km / h)
Byte 00 Bit 5   Central locking installed
Byte 00 Bit 6   Central locking via cylinder lock active (central locking via locking cylinder active)
Byte 00 Bit 7   Central Locking 1-motor-locks with SAFE Function installed (central locking 1-motor-locks with SAFE function installed)

Byte 01 Bit 0   Activation Central Locking Rear Lid after 0.8s active (activates central locking of luggage compartment after 0.8s active)
Byte 01 Bit 1   Confirmation lock for right sliding door via CAN data bus (feedback lock for sliding door right via CAN data bus)
Byte 01 Bit 2   Unknown
Byte 01 Bit 3   Central Locking / Rear Lid: Speed-dependent locking over 5 km / h (central locking / tailgate: speed-based locking (from 5 km / h))
Byte 01 Bit 4   Central Locking / Rear Lid: Direct opening with Switch & Remote control (central locking / tailgate: direct ejection tailgate via push button & radio remote control)
Byte 01 Bit 5   Central Locking / Rear Lid: Contact controlled on detent (central locking / tailgate: contact-controlled on detent (s))
Byte 01 Bit 7   Central Locking / Rear Lid: Rear Lid Locking / Unlocking via Central Locking

Byte 02 Bit 0   Central Locking / Rear Lid: Soft-Touch
Byte 02 Bit 1   4 doors version (excl. Sliding doors and rear lid) (four-door version (excluding sliding doors & tailgate))
Byte 02 Bit 3   Central Locking / Rear Lid: Spring motor (unidirectional) installed (central locking / tailgate: spring actuator (unidirectional) installed)
Byte 02 Bit 4   Actuation for central locking via MOST data bus blocked (control for central locking via MOST data bus blocked)
Byte 02 Bit 5   Central Locking / Rear Lid: Lock with pre-lock and electrical feedback (central locking / tailgate: lock with pre-catch and electrical feedback installed)
Byte 02 Bit 6   Central Locking / Rear Lid: Release button inside (central locking / tailgate: unlocking button installed inside)

Byte 03 Bit 0   Comfort Opening for Sun Roof active
Byte 03 Bit 1   Comfort Closing for Sun Roof active
Byte 03 Bit 2   Comfort Function for Sun Roof active (sliding / topping-up roof (SAD) at comfort opening only set up (instead of completely open))
Byte 03 Bit 3   Comfort Function for Power Windows via Lock Cylinder active
Byte 03 Bit 4   Comfort Function for Windows Power via Drivers Interior Switch active
Byte 03 Bit 5   Comfort Function for Power Windows via Remote Control active
Byte 03 Bit 6   Mirror folding blocked when exceeding 40 km / h (mirror collapse blocked when exceeding 40 km / h)
Byte 03 Bit 7   Comfort Function active (output enable signal during comfort operation via LIN data bus (roof) active)

Byte 04 Bit 0   Alarm deactivation button(for the Transporter California)
Byte 04 Bit 1   Activation of control activation disabled for lock error (control repetition deactivated with lock error)
Byte 04 Bit 2   Internally lock release driver's door (lock internally via lock feedback of driver's door)
Byte 04 Bit 3   Release after-run Electric window Lifter or sliding roof on ignition OFF (Release of electric power windows (eFH) or sliding / tilting roof (SAD) with ignition OFF)
Byte 04 Bit 4   Unknown
Byte 04 Bit 5   Central Locking Re-Locking (after 30 Seconds) active
Byte 04 Bit 6   Rain Closing active

Byte 05 Bit 0   Locking / Unlocking Optical Confirmation (Turn Signal) active
Byte 05 Bit 1   Acoustical Locking Confirmation (Horn) active (Acoustic locking (siren / sounder) confirmed
Byte 05 Bit 2   Unknown
Byte 05 Bit 3   Acoustic Locking Confirmation (Horn) Duration from 40 ms to 20 ms (Acoustic (siren / sounder) acknowledgment shortened from 40 ms to 20 ms)
Byte 05 Bit 4   Acoustic Unlocking Confirmation (Horn) active (Acoustic unlocking (Siren / Sounder) confirm)
Byte 05 Bit 5   Comfort Closing Optical Confirmation (Turn Signal) active (Convenience Conclusion confirm (flashing light)
Byte 05 Bit 6   Anti-Theft-System Sounder / Siren Port active (0 = Simple-Horn installed / 1 = Backup-Siren ( LIN ) installed)
Byte 05 Bit 7   Anti-Theft-System Activation Acoustical Confirmation (Horn) active

Byte 06 Bit 0   Siren Tone Type (0 = frequency modulated / 1 = discontinuoud)
Byte 06 Bit 1   Siren Alarm Type (0 = 10 Alarms (GB / Ireland) / 1 = 1 Alarm ( RoW ))
Byte 06 Bit 2   Anti-Theft-System installed
Byte 06 Bit 3   Anti-Theft-System Deactivation via Ignition Lock active
Byte 06 Bit 5   Anti-Theft-System Delay Start (0 = with Door Opening / 1 = with Unlocking)

Byte 07 Bit 0   Central Locking / Rear: Sliding Door Left installed
Byte 07 Bit 1   Central Locking / Rear: Sliding Door Right installed
Byte 07 Bit 3   Remote Control inactive
Byte 07 Bit 4   Direct ejection for rear lid blocked (direct ejection for tailgate blocked)
Byte 07 Bit 5   Central Locking / Rear Lid: One-Motor-Lock installed (central locking / tailgate: one-engine-lock installed)

Byte 08 Bit 0   Rain / Light Sensor ( RLS ) installed
Byte 08 Bit 1   Inclination Sensor for Anti-Theft System installed
Byte 08 Bit 2   Unknown
Byte 08 Bit 3   Sliding roof (external control / installed (sliding / tilting roof (external control) installed)
Byte 08 Bit 4   Interior Monitoring for Anti-Theft System installed
Byte 08 Bit 5   Unknown
Byte 08 Bit 6   Cable winch installed (Winch installed)
Byte 08 Bit 7   Sounder / Siren for Anti-Theft System (via LIN ) installed

Byte 09 Bit 0   Unknown
Byte 09 Bit 1   Unknown
Byte 09 Bit 2   Selective short stroke function (with terminal S OFF) active (Selective short-stroke function (at terminal S OFF) active
Byte 09 Bit 3   Multi-Function Steering Wheel ( MFSW ) installed
Byte 09 Bit 4   Rear Power Windows installed
Byte 09 Bit 5   Front Power Windows installed
Byte 09 Bit 6   Unknown
Byte 09 Bit 7   Short stroke active (short-stroke function active)

Byte 10 Bit 0   Body control module ( BCM ) with external start / stop control (Body Control Module ( BCM ) with external start / stop control)
Byte 10 Bit 1   Leaving Home (LH) active
Byte 10 Bit 2   Coming-Home (CH) active
Byte 10 Bit 3   Active display of "Safelock" in the Multi Function Display (Safelock display active in the dash panel insert)
Byte 10 Bit 4   Unknown
Byte 10 Bit 5   Unknown
Byte 10 Bit 6   Reversed rotary contacts for rear sliding doors (reversing contacts for rear sliding doors reversed)

Byte 11 Bit 0   High beam via shutter (xenon) active / installed (high beam via shutter (xenon) active / installed)
Byte 11 Bit 1   Lamp failure detection for additional position lights active (lamp failure detection for additional position lights active)
Byte 11 Bit 2   Activation of additional position lights via pulse width modulation ( PWM ) active (activation of additional position lights via pulse width modulation ( PWM ) active)
Byte 11 Bit 3   Additional position lights installed (Additional position lights installed)
Byte 11 Bit 4   Activation of back-up light via pulse width modulation ( PWM ) active (activation of reversing lamp via pulse width modulation ( PWM ) active)
Byte 11 Bit 5   Activation of license plate light via pulse width modulation ( PWM ) active (activation of license plate illumination via pulse width modulation ( PWM ) active)
Byte 11 Bit 6   Lamp Diagnostics for Back-Up Light active
Byte 11 Bit 7   Lamp Diagnostics for License Plate Light active

Byte 12 Bit 0   Parking Lights ON with "Terminal 15 ON" (parking light ON with ignition / terminal 15 ON) Note: Active rear lighting with daytime running lights !!
Byte 12 Bit 1   Daytime Running Light (DRL) adjustable (Manually AND / OR Instrument Cluster)
Byte 12 Bit 2   Interior Light after Ignition Key removal active
Byte 12 Bit 3   Emergency Flashing (Turn Signals) active
Byte 12 Bit 4   Emergency Brake Flashing (Brake Light) active
Byte 12 Bit 5   Comfort Turn Signals active
Byte 12 Bit 6   Turn / Cornering Lights installed / active

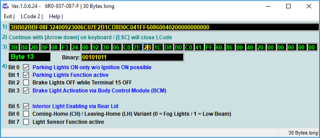

Byte 13 Bit 0   Parking Lights ON only w / o Ignition ON possible
Byte 13 Bit 1   Parking Lights Function active
Byte 13 Bit 2   Brake Lights OFF while Terminal 15 OFF
Byte 13 Bit 3   Brake Light Activation via Body Control Module ( BCM )
Byte 13 Bit 5   Interior Light Enabling via Rear Lid
Byte 13 Bit 6   Coming Home (CH) / Leaving Home (LH) Variant (0 = Fog Lights / 1 = Low Beam)
Byte 13 Bit 7   Light Sensor Function active

Byte 14 Bit 0   Headlight Wishers installed
Byte 14 Bit 1   Rain Sensor Function active
Byte 14 Bit 2   Service Position for Front Wiper active
Byte 14 Bit 3   Comfort Function for Rear Wiper active
Byte 14 Bit 4   Tear Wiping active
Byte 14 Bit 7   Speed ??dependent Wiper Stage Activation active

Byte 15 Bit 0   Push-to-Talk Function via Multi-Function-Steering-Wheel ( MFSW ) active
Byte 15 Bit 2   Rear Window Heater Activation (via) CAN active
Byte 15 Bit 3   Mirror Heating ON while Rear Window Heater ON
Byte 15 Bit 4   Intervention / deactivation for heated seats (deactivated by energy management) deactivated
Byte 15 Bit 5   Heated Front Window installed
Byte 15 Bit 6   Heated Outside Mirrors installed
Byte 15 Bit 7   Heated Rear Window installed

Byte 16 Bit 0   Activation low beam via pulse width modulation ( PWM ) active (control of low beam via pulse width modulation ( PWM ) active)
Byte 16 Bit 1   Activation of fog light via pulse width modulation ( PWM ) active (activation of rear fog light via pulse width modulation ( PWM ) active)
Byte 16 Bit 2   Activation of daytime running lights via pulse width modulation ( PWM ) active (activation of daytime running light via pulse width modulation ( PWM ) active)
Byte 16 Bit 3   Activation of High Beam via pulse width modulation ( PWM ) active (activation of high beam via pulse width modulation ( PWM ) active)
Byte 16 Bit 4   Lamp Diagnostics for Low Beam active
Byte 16 Bit 5   Lamp Diagnostics for Rear Fog Light (s) active
Byte 16 Bit 6   Lamp Diagnostics for (Separate) Daytime Running Lights (DRL) active
Byte 16 Bit 7   Lamp Diagnostics for High Beam active

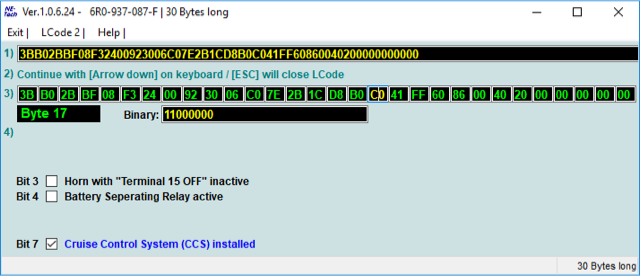

Byte 17 Bit 3   Horn with "Terminal 15 OFF" inactive
Byte 17 Bit 4   Battery Seperating Relay active
Byte 17 Bit 5   Enable for special functions I active / multifunctional control (MFG) (release for special functions I active / multifunction control (MFG) installed)
Byte 17 Bit 6   Control of electric fuel pump (EKP) via driver door opening (activation of electric fuel pump (ECP) via driver's door opening)
Byte 17 Bit 7   Cruise Control System ( CCS ) installed

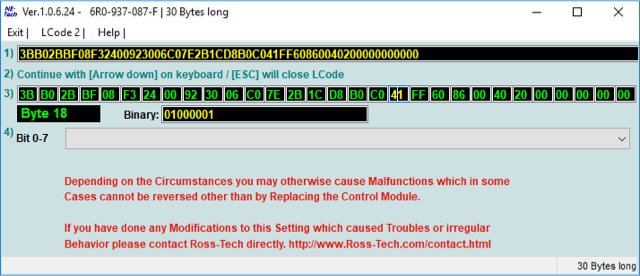

Byte 18 Bit 0~7   00 Light Setup: Standard / Parameter Settings (EEPROM)
Byte 18 Bit 0-1   01 Model parking light: 5W + 5W (version parking light: 5W + 5W)
Byte 18 Bit 3-4   00 Indicator lights: 21W / 21W / 5W (Indicator versions: 21W / 21W / 5W)
Byte 18 Bit 5   Output high beam active (output high beam active)
Byte 18 Bit 6-7   40 Brake lights: 21W / 21W / 5W (brake lights version: 21W / 21W / 5W)

Byte 19 Bit 0   Control of fog / cornering light via pulse width modulation ( PWM ) active (activation of fog / cornering light via pulse width modulation ( PWM ) active)
Byte 19 Bit 1   Control of rear lights via pulse width modulation ( PWM ) active (control limiting / tail light via pulse width modulation ( PWM ) active)
Byte 19 Bit 2   Control of brake lights via pulse width modulation ( PWM ) active (activation of brake lights via pulse width modulation ( PWM ) active)
Byte 19 Bit 3   Control of indicator / turn lights via pulse width modulation ( PWM ) active (activation of flashing lights via pulse width modulation ( PWM ) active)
Byte 19 Bit 4   Lamp Diagnostics for Turn Lights active
Byte 19 Bit 5   Lamp Diagnostics for Fog Lights and / or Cornering / Turn Lights active
Byte 19 Bit 6   Lamp Diagnostics for Tail Lights active
Byte 19 Bit 7   Lamp Diagnostics for Brake Lights active

Byte 20 Bit 1   Recuperation active / installed (recuperation active / installed)
Byte 20 Bit 2   Battery module (BDM) indstalled (battery data module (BDM) installed)
Byte 20 Bit 3   Generator connection via LIN data bus (generator connection installed via LIN data bus)
Byte 20 Bit 4   Start / stop function active / installed (start / stop function active / installed)
Byte 20 Bit 5   Energy Management active (battery / energy management active)
Byte 20 Bit 6   Function Tension indicator active with active transport mode (TRA) active (function Standby voltage display active with active transport mode (TRA) active)

Byte 21 Bit 0   Daytime running light in LED version (daytime running lights built in LED version)
Byte 21 Bit 1   Dimming switch lighting via fixed value (see APK 045) active (dimming switch illumination via fixed value (see APK 045) active)
Byte 21 Bit 2   Cornering / Turn Lights via Turn Signal active
Byte 21 Bit 3   Cornering light on both sides when reversing (cornering light on both sides when reversing)
Byte 21 Bit 4   Roof flashing lights installed (roof lights installed)
Byte 21 Bit 5   Fog Lights inactive with High Beams active
Byte 21 Bit 6   Two-sided parking light active / side markers lights installed (double-sided parking light active / side marker lights installed)
Byte 21 Bit 7   Front Fog Lights (with Turn Lights) installed

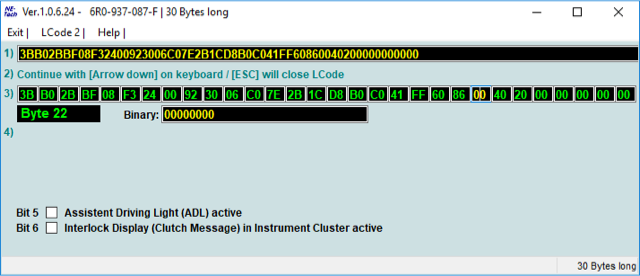

Byte 22 Bit 0   Light reduction / evaluation Light switch ( LDS ) position 0 (at 'ZV CLOSE'?) (Parking light reduction / evaluation light rotary switch ( LDS ) position 0 (at 'ZV CLOSE'?))
Byte 22 Bit 1   Unknown
Byte 22 Bit 2   Low beam inactive with main beam active (dipped beam inactive with main beam active)
Byte 22 Bit 3   Display daytime running light active / installed (daytime running light active / installed)
Byte 22 Bit 4   Shut-off of the rear fog lights (NSL) with luggage compartment open (shut-off rear fog lights (NSL) when the trunk is open)
Byte 22 Bit 5   Assistant Driving Light (ADL) active
Byte 22 Bit 6   Interlock Display (Clutch Message) in instrument cluster active (function automatic start active)

Byte 23 Bit 0   Alternative Voltage Supply for High Beam and Terminal 58d
Byte 23 Bit 1   Rear fog light (NSL) in high beam (FL) inactive (rear fog light (NSL) at high beam (FL) inactive)
Byte 23 Bit 2-3   00 Daytime running lights (TFL) via exit for daytime running lights (TFL) (daytime running light (TFL) via exit for daytime running lights (TFL))
Byte 23 Bit 4   Daytime running light (TFL) is switched off when the handbrake is pulled (deactivation daytime running light (TFL) with pulled handbrake)
Byte 23 Bit 5   Daytime running lights with parking light (Daytime running light with parking light)
Byte 23 Bit 6   Function "Daytime Running Light (DRL)" active
Byte 23 Bit 7   Switch off the daytime running lights when the turning lights active (turn off daytime running light when flashing)

Byte 24 Bit 0   Parking light OFF with low beam and S-contact OFF (parking light OFF at dipped beam and S-contact OFF)
Byte 24 Bit 1   Display for limiting light active / installed (display for limiting light active / installed)
Byte 24 Bit 2   Delay light switch ( LDS ) always active (delay light rotary switch ( LDS ) always active)
Byte 24 Bit 3   Unknown

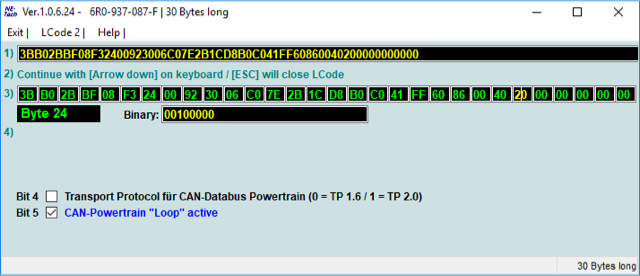

Byte 24 Bit 4   Transport Protocol for CAN-Databus Powertrain (0 = TP 1.6 / 1 = TP 2.0)
Byte 24 Bit 5   CAN-Powertrain "Loop" active

Byte 25 Bit 0   Unknown

Byte 26 Bit 0   Rotary signal for sliding door on the left via CAN data bus (rotary signal for sliding door left via CAN data bus)
Byte 26 Bit 1   Rotary signal for sliding doors on the right via CAN data bus (rotary signal for sliding door right via CAN data bus)
Byte 26 Bit 2   Control 2-motor locks active (special solution Beetle / Beetle Convertible (activation of 2-motor-locks active (special solution Beetle / Beetle convertible)
Byte 26 Bit 3   Unknown
Byte 26 Bit 4   Radio remote control (FFB) active in transport mode (radio remote control (FFB) active in transport mode)

Byte 27 Bit 0   License plate light in LED design (license plate illumination in LED version)
Byte 27 Bit 1   Activation terminal 58d active via body control module ( BCM ) with pulse width modulation ( PWM ) (activation of terminal 58d via body control module ( BCM ) with pulse width modulation ( PWM ) active)

Byte 28 Bit 0   Unknown

Byte 29 Bit 0   Unknown

Heeft u voor dit auto-model een uitbreiding of verbetering dan hoor ik dat graag.
Uw bijdrage zal met bronvermelding worden geplaatst.

Deze pagina is voor het laatst bijgewerkt op 21 april 2019.

Verbeteringen / Aanvullingen      Zoeken      Bronvermelding      Pas op      Disclaimer      Privacy      Colofon      Copyright © 2002-  G. Speek      VAG-COM  home

Specialist in diagnoseapparatuur voor VAGSpecialist in diagnoseapparatuur voor alle automerken
