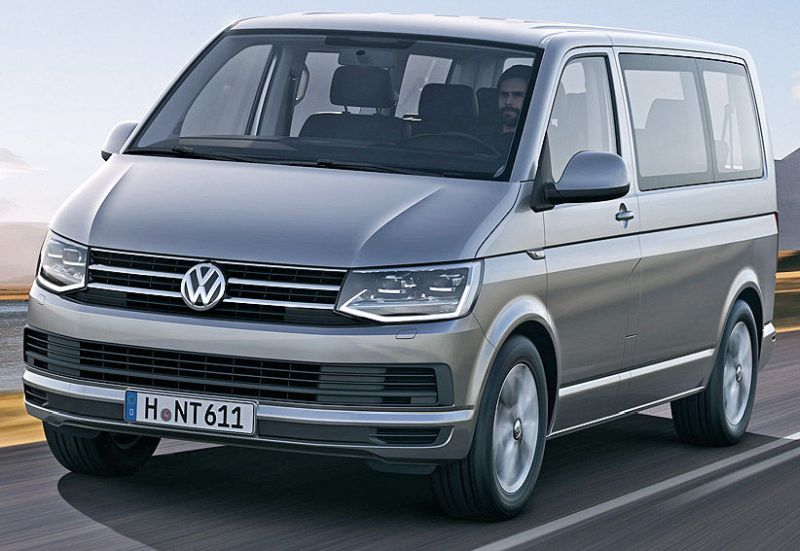

VCDS aanpassingen specifiek voor de Volkswagen Transporter-T6 chassiscode [7E/7F] Reken je niet te vroeg rijk. De mogelijkheid moet wel aanwezig zijn in de regelmodule die in jouw auto zit.
Doe jezelf (en Ross-Tech en Priemus en rCs en mij) een plezier en lees dit even. |
klik |
 |
Achterklep dicht doen met middelste knop afstandsbediening |
Als auto ontgrendeld is dan is de klep te bedienen met de afstandsbediening: openen en sluiten. Er staan in [Aanpassing-10] meer regels met betrekking tot het openen en sluiten met de sleutel. |
Achter-ruitenwisser |
Kan wel, maar nog onbekend waar en hoe. |
Achteruitrij-camera activeren |
Als er parkeersensoren aanwezig zijn dan moeten die worden aangepast:
|
Auto lock / unlock |
Kan wel, maar nog onbekend waar en hoe. |
Coming / Leaving home |
Kan wel, maar nog onbekend waar en hoe. |
Dagrijlichten |
Kan wel, maar nog onbekend waar en hoe. |
Needle Sweep |
Zie 'Teller test' |
Start-Stop déactiveren |
|
Tellertest |
|
Tranen wissen |
Kan wel, maar nog onbekend waar en hoe. |
Veiligheidsgordel, waarschuwing uitzetten |
|
Posting this here as I believe it contains codes previously undocumented on the forum. It comes from the the OBDeleven forum, with extra functions added to the list by the poster Oberon. I'm posting as is and take no responsibility for the accuracy of the data. Central electrics control unit. Long coding: Byte 00 Bit 0 Selective Central Locking (Single Door Locking) active Byte 00 Bit 1 Central Locking WITHOUT SAFE-Function (Zentralverriegelung OHNE SAFE-Funktion verbaut) Byte 00 Bit 2 Central Locking 2-motor-locks installed (Zentralverriegelung 2-Motoren-Schlösser verbaut) Byte 00 Bit 3 Auto-Unlock (Unlocking when Removing the Ignition Key) Byte 00 Bit 4 Auto-Lock (Automatic Locking above 15 km/h) Byte 00 Bit 5 Central Locking installed Byte 00 Bit 6 Central Locking via cylinder lock active (Zentralverriegelung über Schliesszylinder aktiv) Byte 00 Bit 7 Central Locking 1-motor-locks with SAFE Function installed (Zentralverriegelung 1-Motoren-Schlösser mit SAFE Funktion verbaut) Byte 01 Bit 0 Activation Central Locking Rear Lid after 0.8s active (Aktivierung Zentralverriegelung Gepäckraum nach 0.8s aktiv) Byte 01 Bit 1 Confirmation lock for right sliding door via CAN data bus (Rückmeldung Schloss für Schiebetür rechts über CAN-Datenbus) Byte 01 Bit 2 ? Byte 01 Bit 3 Central Locking/Rear Lid: Speed depending locking over 5 km/h (Zentralverriegelung/Heckklappe: Geschwindigkeits basierte Verriegelung (ab 5 km/h)) Byte 01 Bit 4 Central Locking/Rear Lid: Direct opening with Switch & Remote control (Zentralverriegelung/Heckklappe: Direkter Auswurf Heckklappe über Taster & Funkfernbedienung) Byte 01 Bit 5 Central Locking/Rear Lid: Contact controlled on detent (Zentralverriegelung/Heckklappe: Kontaktgesteuert auf Raste:thumbsdown:) Byte 01 Bit 7 Central Locking/Rear Lid: Rear Lid Locking/Unlocking via Central Locking Byte 02 Bit 0 Central Locking/Rear Lid: Soft-Touch Byte 02 Bit 1 4 doors version (excl. Sliding doors and rear lid) (Ausführung Viertürer (exkl. Schiebetüren & Heckklappe)) Byte 02 Bit 3 Central Locking/Rear Lid: Spring motor (unidirectional) installed (Zentralverriegelung/Heckklappe: Federstellmotor (unidirektional) verbaut) Byte 02 Bit 4 Actuation for central locking via MOST data bus blocked (Ansteuerung für Zentralverriegelung via MOST-Datenbus gesperrt) Byte 02 Bit 5 Central Locking/Rear Lid: Lock with pre-lock and electrical feedback (Zentralverriegelung/Heckklappe: Schloss mit Vorraste und elektrischer Rückmeldung verbaut) Byte 02 Bit 6 Central Locking/Rear Lid: Release button inside (Zentralverriegelung/Heckklappe: Entriegelungstaster innen verbaut) Byte 03 Bit 0 Comfort Opening for Sun Roof active Byte 03 Bit 1 Comfort Closing for Sun Roof active Byte 03 Bit 2 Comfort Function for Sun Roof active (Schiebe-/Aufstelldach (SAD) bei Komfortöffnung nur aufstellen (statt komplett öffnen)) Byte 03 Bit 3 Comfort Function for Power Windows via Lock Cylinder active Byte 03 Bit 4 Comfort Function for Power Windows via Drivers Interior Switch active Byte 03 Bit 5 Comfort Function for Power Windows via Remote Control active Byte 03 Bit 6 Mirror folding blocked when exceeding 40 km/h (Spiegelanklappung bei Überschreitung 40 km/h gesperrt) Byte 03 Bit 7 Comfort Function active (Ausgabe Freigabesignal während Komfortbedienung über LIN-Datenbus (Dach) aktiv) Byte 04 Bit 0 SECRET Alarm function (send a pm if you want more information (Funktion, welche die Diebstahlwarnanlage betrifft! Schreibt eine PN wenn Ihr mehr Infos wollt) Byte 04 Bit 1 Activation of control activation disabled for lock error (Ansteuerungswiederholung bei Schlossfehler deaktiviert) Byte 04 Bit 2 Internally lock over lock release driver's door (Intern verriegeln über Schlossrückmeldung Fahrertür) Byte 04 Bit 3 Release after-run Electric window lifter or sliding roof on ignition OFF (Freigabenachlauf elektrische Fensterheber (eFH) bzw. Schiebe-/Ausstelldach (SAD) bei Zündung AUS) Byte 04 Bit 4 ? Byte 04 Bit 5 Central Locking Re-Locking (after 30 Seconds) active Byte 04 Bit 6 Rain Closing active Byte 05 Bit 0 Locking/Unlocking Optical Confirmation (Turn Signal) active Byte 05 Bit 1 Acoustical Locking Confirmation (Horn) active (Verriegelung akustische (Sirene/Sounder) bestätigen Byte 05 Bit 2 ? Byte 05 Bit 3 Acoustical Locking Confirmation (Horn) duration from 40 ms to 20 ms (Akustische (Sirene/Sounder) Bestätigung von 40 ms auf 20 ms verkürzt) Byte 05 Bit 4 Acoustical Unlocking Confirmation (Horn) active (Entriegelung akustisch (Sirene/Sounder) bestätigen) Byte 05 Bit 5 Comfort Closing Optical Confirmation (Turn Signal) active (Komfortschliessen optisch (Blinklicht) bestätigen Byte 05 Bit 6 Anti-Theft-System Sounder/Sirenen Port active (0 = Simple-Horn installed / 1 = Backup-Siren (LIN) installed) Byte 05 Bit 7 Anti-Theft-System Activation Acoustical Confirmation (Horn) active Byte 06 Bit 0 Siren Tone Type (0 = frequency modulated / 1 = discontinuoud) Byte 06 Bit 1 Siren Alarm Type (0 = 10 Alarms (GB/Irland) / 1 = 1 Alarm (RoW)) Byte 06 Bit 2 Anti-Theft-System installed Byte 06 Bit 3 Anti-Theft-System Deactivation via Ignition Lock active Byte 06 Bit 5 Anti-Theft-System Delay Start (0 = with Door Opening / 1 = with Unlocking) Byte 07 Bit 0 Central Locking/Rear: Slidung Door Left installed Byte 07 Bit 1 Central Locking/Rear: Slidung Door Right installed Byte 07 Bit 3 Remote Control inactive Byte 07 Bit 4 Direct ejection for rear lid blocked (Direkter Auswurf für Heckklappe blockiert) Byte 07 Bit 5 Central Locking/Rear Lid: One-Motor-Lock installed (Zentralverriegelung/Heckklappe: Ein-Motoren-Schloss verbaut) Byte 08 Bit 0 Rain/Light Sensor (RLS) installed Byte 08 Bit 1 Inclination Sensor for Anti-Theft System installed Byte 08 Bit 2 ? Byte 08 Bit 3 Sliding roof (external control/ installed (Schiebe-/Ausstelldach (externe Steuerung) verbaut Byte 08 Bit 4 Interior Monitoring for Anti-Theft System installed Byte 08 Bit 5 ? Byte 08 Bit 6 Cable winch installed (Seilwinde verbaut) Byte 08 Bit 7 Sounder/Siren for Anti-Theft System (via LIN) installed Byte 09 Bit 0 ? Byte 09 Bit 1 ? Byte 09 Bit 2 Selective short stroke function (with terminal S OFF) active (Selektive Kurzhubfunktion (bei Klemme S AUS) aktiv Byte 09 Bit 3 Multi-Function-Steering-Wheel (MFSW) installed Byte 09 Bit 4 Rear Power Windows installed Byte 09 Bit 5 Front Power Windows installed Byte 09 Bit 6 ? Byte 09 Bit 7 Short stroke active (Kurzhubfunktion aktiv) Byte 10 Bit 0 Body control module (BCM) with external start / stop control (Body-Control-Module (BCM) mit externer Start/Stopp-Regelung) Byte 10 Bit 1 Leaving-Home (LH) active Byte 10 Bit 2 Coming-Home (CH) active Byte 10 Bit 3 Active display of "Safelock" in den Multi Function Display (Anzeige Safelock im Schalttafeleinsatz aktiv) Byte 10 Bit 4 ? Byte 10 Bit 5 ? Byte 10 Bit 6 Reversed rotary contacts for rear sliding doors (Drehfallenkontakte für hintere Schiebetüren reversiert) Byte 11 Bit 0 High beam via shutter (xenon) active/installed (Fernlicht über Shutter (Xenon) aktiv/verbaut) Byte 11 Bit 1 Lamp failure detection for additional position lights active (Lampenausfallerkennung für zusätzliche Positionsleuchten aktiv) Byte 11 Bit 2 Activation of additional position lights via pulse width modulation (PWM) active (Ansteuerung zusätzliche Positionsleuchten über Pulsweitenmodulation (PWM) aktiv) Byte 11 Bit 3 Additional position lights installed (Zusätzliche Positionsleuchten verbaut) Byte 11 Bit 4 Activation of Back-Up Light via pulse width modulation (PWM) active (Ansteuerung Rückfahrleuchte über Pulsweitenmodulation (PWM) aktiv) Byte 11 Bit 5 Activation of license plate light via pulse width modulation (PWM) active (Ansteuerung Kennzeichenbeleuchtung über Pulsweitenmodulation (PWM) aktiv) Byte 11 Bit 6 Lamp Diagnostics for Back-Up Light active Byte 11 Bit 7 Lamp Diagnostics for License Plate Light active Byte 12 Bit 0 Parking Lights ON with "Terminal 15 ON" (Standlicht EIN bei Zündung/Klemme 15 EIN) Anmerkung: Aktive Heckbeleuchtung bei Tagfahrlicht!! Byte 12 Bit 1 Daytime Running Light (DRL) adjustable (Manually AND/OR Instrument Cluster) Byte 12 Bit 2 Interior Light after Ignition Key removal active Byte 12 Bit 3 Emergency Flashing (Turn Signals) active Byte 12 Bit 4 Emergency Brake Flashing (Brake Light) active Byte 12 Bit 5 Comfort Turn Signals active Byte 12 Bit 6 Turn/Cornering Lights installed/active Byte 13 Bit 0 Parking Lights ON only w/o Ignition ON possible Byte 13 Bit 1 Parking Lights Function active Byte 13 Bit 2 Brake Lights OFF while Terminal 15 OFF Byte 13 Bit 3 Brake Light Activation via Body Control Module (BCM) Byte 13 Bit 5 Interior Light Enabling via Rear Lid Byte 13 Bit 6 Coming-Home (CH) / Leaving-Home (LH) Variant (0 = Fog Lights / 1 = Low Beam) Byte 13 Bit 7 Light Sensor Function active Byte 14 Bit 0 Headlight Wishers installed Byte 14 Bit 1 Rain Sensor Function active Byte 14 Bit 2 Service Position for Front Wiper active Byte 14 Bit 3 Comfort Function for Rear Wiper active Byte 14 Bit 4 Tear Wiping active Byte 14 Bit 7 Speed dependent Wiper Stage Activation active Byte 15 Bit 0 Push-to-Talk Function via Multi-Function-Steering-Wheel (MFSW) active Byte 15 Bit 2 Rear Window Heater Activation (via) CAN active Byte 15 Bit 3 Mirror Heating ON while Rear Window Heater ON Byte 15 Bit 4 Intervention / deactivation for heated seats (by energy management) deactivated (Eingriff/Abschaltung für beheizbare Sitze (durch Energiemanagement) deaktiviert) Byte 15 Bit 5 Heated Front Window installed Byte 15 Bit 6 Heated Outside Mirrors installed Byte 15 Bit 7 Heated Rear Window installed Byte 16 Bit 0 Activation low beam via pulse width modulation (PWM) active (Ansteuerung Abblendlicht über Pulsweitenmodulation (PWM) aktiv) Byte 16 Bit 1 Activation of fog light via pulse width modulation (PWM) active (Ansteuerung Nebelschlusslicht über Pulsweitenmodulation (PWM) aktiv) Byte 16 Bit 2 Activation of Daytime running lights via pulse width modulation (PWM) active (Ansteuerung Tagfahrlicht über Pulsweitenmodulation (PWM) aktiv) Byte 16 Bit 3 Activation of High Beam via pulse width modulation (PWM) active (Ansteuerung Fernlicht über Pulsweitenmodulation (PWM) aktiv) Byte 16 Bit 4 Lamp Diagnostics for Low Beam active Byte 16 Bit 5 Lamp Diagnostics for Rear Fog Light(s) active Byte 16 Bit 6 Lamp Diagnostics for (Separate) Daytime Running Lights (DRL) active Byte 16 Bit 7 Lamp Diagnostics for High Beam active Byte 17 Bit 3 Horn with "Terminal 15 OFF" inactive Byte 17 Bit 4 Battery Seperating Relay active Byte 17 Bit 5 Enable for special functions I active / multifunctional control (MFG) (Freigabe für Sonderfunktionen I aktiv / Multifunktionssteuerung (MFG) verbaut) Byte 17 Bit 6 Control of electric fuel pump (EKP) via driver door opening (Ansteuerung elektrische Kraftstoffpumpe (EKP) über Fahrertüröffnung) Byte 17 Bit 7 Cruise Control System (CCS) installed Byte 18 Bit 0~7 00 Light Setup: Standard/Parameter Settings (EEPROM) Byte 18 Bit 0-1 01 Model parking light: 5W + 5W (Ausführung Standlicht: 5W+5W) Byte 18 Bit 3-4 00 Indicator lights: 21W/21W/5W (Ausführung Blinkleuchten: 21W/21W/5W) Byte 18 Bit 5 Output high beam active (Ausgang Fernlicht aktiv) Byte 18 Bit 6-7 40 Brake lights: 21W/21W/5W (Ausführung Bremsleuchten: 21W/21W/5W) Byte 19 Bit 0 Control of fog/cornering light via pulse width modulation (PWM) active (Ansteuerung Nebel-/Abbiegelicht über Pulsweitenmodulation (PWM) aktiv) Byte 19 Bit 1 Control of rear lights via pulse width modulation (PWM) active (Ansteuerung Begrenzung-/Schlusslicht über Pulsweitenmodulation (PWM) aktiv) Byte 19 Bit 2 Control of brake lights via pulse width modulation (PWM) active (Ansteuerung Bremsleuchten über Pulsweitenmodulation (PWM) aktiv) Byte 19 Bit 3 Control of indicator/turn lights via pulse width modulation (PWM) active (Ansteuerung Blinkleuchten über Pulsweitenmodulation (PWM) aktiv) Byte 19 Bit 4 Lamp Diagnostics for Turn Lights active Byte 19 Bit 5 Lamp Diagnostics for Fog Lights and/or Cornering/Turn Lights active Byte 19 Bit 6 Lamp Diagnostics for Tail Lights active Byte 19 Bit 7 Lamp Diagnostics for Brake Lights active Byte 20 Bit 1 Recuperation active / installed (Rekuperation aktiv/verbaut) Byte 20 Bit 2 Battery module (BDM) indstalled (Batteriedatenmodul (BDM) verbaut) Byte 20 Bit 3 Generator connection via LIN data bus (Generator-Anbindung über LIN-Datenbus verbaut) Byte 20 Bit 4 Start / stop function active / installed (Start/Stopp-Funktion aktiv/verbaut) Byte 20 Bit 5 Energy Management active (Batterie-/Energiemanagement aktiv) Byte 20 Bit 6 Function Tension indicator active with active transport mode (TRA) active (Funktion Ruhespannungsanzeige bei aktivem Transportmodus (TRA) aktiv) Byte 21 Bit 0 Daytime running light in LED version (Tagfahrlicht in LED-Ausführung verbaut) Byte 21 Bit 1 Dimming Switch lighting via fixed value (see APK 045) active (Dimmung Schalterbeleuchtung über Festwert (siehe APK 045) aktiv) Byte 21 Bit 2 Cornering/Turn Lights via Turn Signal active Byte 21 Bit 3 Cornering light on both sides when reversing (Abbiegelicht beidseitig bei Rückwärtsfahrt) Byte 21 Bit 4 Roof flashing lights installed (Dachblinkleuchten verbaut) Byte 21 Bit 5 Fog Lights inactive with High Beams active Byte 21 Bit 6 Two-sided parking light active / side marker lights installed (Beidseitiges Parklicht aktiv / Seitenmarkierungsleuchten verbaut) Byte 21 Bit 7 Front Fog Lights (with Turn Lights) installed Byte 22 Bit 0 Light reduction / evaluation Light switch (LDS) Position 0 (at 'ZV CLOSE'?) (Standlichtreduzierung / Auswertung Lichtdrehschalter (LDS) Stellung 0 (bei 'ZV ZU'?)) Byte 22 Bit 1 ? Byte 22 Bit 2 Low beam inactive with main beam active(Abblendlicht inaktiv bei Fernlicht aktiv) Byte 22 Bit 3 Display daytime running light active / installed (Anzeige Tagfahrlicht aktiv/verbaut) Byte 22 Bit 4 Shut-off of rear fog lights (NSL) with luggage compartment open (Abschaltung Nebelschlussleuchten (NSL) bei geöffnetem Kofferraum) Byte 22 Bit 5 Assistent Driving Light (ADL) active Byte 22 Bit 6 Interlock Display (Clutch Message) in Instrument Cluster active (Funktion Automatikstart aktiv) Byte 23 Bit 0 Alternative Voltage Supply for High Beam and Terminal 58d Byte 23 Bit 1 Rear fog light (NSL) in high beam (FL) inactive (Nebelschlusslicht (NSL) bei Fernlicht (FL) inaktiv) Byte 23 Bit 2-3 00 Daytime running lights (TFL) via exit for daytime running lights (TFL) (Tagfahrlicht (TFL) über Ausgang für Tagfahrlicht (TFL)) Byte 23 Bit 4 Daytime running light (TFL) is switched off when the handbrake is pulled (Abschaltung Tagfahrlicht (TFL) bei gezogener Handbremse) Byte 23 Bit 5 Daytime running lights with parking light (Tagfahrlicht bei Standlicht) Byte 23 Bit 6 Function "Daytime Running Light (DRL)" active Byte 23 Bit 7 Switch off the daytime running lights when the turning lights active (Tagfahrlicht beim Blinken abschalten) Byte 24 Bit 0 Parking light OFF with low beam and S-contact OFF (Standlicht AUS bei Abblendlicht und S-Kontakt AUS) Byte 24 Bit 1 Display for limiting light active / installed (Anzeige für Begrenzungslicht aktiv/verbaut) Byte 24 Bit 2 Delay light switch (LDS) always active (Verzögerung Lichtdrehschalter (LDS) immer aktiv) Byte 24 Bit 3 ? Byte 24 Bit 4 Transport Protocol für CAN-Databus Powertrain (0 = TP 1.6 / 1 = TP 2.0) Byte 24 Bit 5 CAN-Powertrain "Loop" active Byte 25 Bit 0 ? Byte 26 Bit 0 Rotary signal for sliding door on the left via CAN data bus (Drehfallensignal für Schiebetür links über CAN-Datenbus) Byte 26 Bit 1 Rotary signal for sliding door on the right via CAN data bus (Drehfallensignal für Schiebetür rechts über CAN-Datenbus) Byte 26 Bit 2 Control 2-motor locks active (special solution Beetle / Beetle Cabrio (Ansteuerung 2-Motoren-Schlösser aktiv (Sonderlösung Beetle/Beetle Cabrio) Byte 26 Bit 3 ? Byte 26 Bit 4 Radio remote control (FFB) active in transport mode (Funkfernbedienung (FFB) im Transportmodus aktiv) Byte 27 Bit 0 License plate light in LED design (Kennzeichenbeleuchtung in LED Ausführung) Byte 27 Bit 1 Activation terminal 58d active via Body Control Module (BCM) with pulse width modulation (PWM) (Ansteuerung Klemme 58d über Body Control Module (BCM) mit Pulsweitenmodulation (PWM) aktiv) Byte 28 Bit 0 ? Byte 29 Bit 0 ? Adaptations: Adaptation channel 00 Clear Learned Values "This Channel resets/clears all learned Remote Controls". Adaptation channel 01 Remote Control Adaptation Adaptation channel 03 Central Locking: Auto-Lock The doors will lock automatically when the vehicle reaches a speed of 15 km/h or 10 mph. Range: 0 = OFF / 1 = ON Adaptation channel 04 Central Locking: Auto-Unlock The doors will unlock automatically when the key is removed from the ignition switch. Range: 0 = OFF / 1 = ON Adaptation channel 06 Central Locking: Selective (Single) Door Locking 0 = All Door Locking 1 = Selective (Single) Door Locking Adaptation channel 07 Central Locking: Auto-Lock/Unlock for Rear Lid Locks the Rear Lid once a Speef of 5 kph is reached. 0 = Auto-Lock/Unlock for Rear Lid inactive 1 = Auto-Lock/Unlock for Rear Lid active Adaptation channel 08 Visual Comfort Operation/Closing Confirmation Turn Signals as Comfort Operation/Closing Confirmation. 0 = Visual Comfort Operation Confirmation inactive 1 = Visual Comfort Operation Confirmation active Adaptation channel 09 Central Locking: Audible Unlocking Confirmation Alarm Horn as Unlocking Confirmation 0 = Audible Unlocking Confirmation inactive 1 = Audible Unlocking Confirmation active Adaptation channel 11 Central Locking: Audible Locking Confirmation Alarm Horn as Locking Confirmation 0 = Audible Locking Confirmation inactive 1 = Audible Locking Confirmation active Adaptation channel 12 Central Locking: Visual Locking/Unlocking Confirmation Turn Signals as Locking/Unlocking Confirmation. 0 = Visual Locking/Unlocking Confirmation inactive 1 = Visual Locking/Unlocking Confirmation active Adaptation channel 14 Anti-Theft: Alarm Horn (Country Setting) The Alarm Horn Country Setting alters the Type/Lenght and Volume of the Alarm Tone (please obey all applicable laws). 0 = Frequency modulated with 10 Tamper Alarms 1 = Frequency modulated with 1 Tamper Alarm Adaptation channel 20 Lights: Comfort Turn Signals 0 = Comfort Turn Signals inactive 1 = Comfort Turn Signals active Note: See Channel 43 for the Number of Cycles. Adaptation channel 21 Lights: Emergency Brake/Hazard Light Flashing Flashes the Hazard Lights in case of an Emergency Braking 0 = Emergency Brake/Hazard Light Flashing inactive 1 = Emergency Brake/Hazard Light Flashing active Adaptation channel 22 Lights: Parking Lights 0 = Parking Light Function inactive 1 = Parking Light Function active Adaptation channel 23 Wipers: Front Wiper Service Mode/Position 0 = Front Wiper Service Mode inactive 1 = Front Wiper Service Mode active Adaptation channel 24 Anti-Theft: Alarm Horn (Terminal 15) 0 = Alarm Horn with Terminal 15 inactive 1 = Alarm Horn with Terminal 15 active Adaptation channel 26 Wipers: Front Wiper Tear Wiping 0 = Front Wiper Tear Wiping inactive 1 = Front Wiper Tear Wiping active Adaptation channel 27 Lights: Parking Light with Terminal 15 0 = Parking Light with Terminal 15 inactive 1 = Parking Light with Terminal 15 enabled Adaptation channel 28 Wipers: Rear Wiper Comfort Wiping Activates the Rear Wiper when engaging Reverse Gear while the Front Wipers are active/running. 0 = Rear Wiper Comfort Wiping inactive 1 = Rear Wiper Comfort Wiping active Adaptation channel 43 Lights: Comfort Turn Signals (Cycles) Range: 1...5 Standard: 3 Adaptation channel 60 Anti-Theft: Interior Monitoring Sensitivity Adaptation channel 60 Alters the Interior Monitoring Sensitivity to prevent False Alarms. Range: 100...200 (50...100 %) Resolution: 20 % Adaptation channel 61 Anti-Theft: Inclination Sensor Sensitivity Alters the Inclination Sensor Sensitivity to prevent False Alarms. Range: 100...200 (50...100 %) Resolution: 20 % Adaptation channel 99 Factory Mode Adaptation channel 99 The Factory Mode is being used to visualize Errors to the Workers during the Production and can once it's being deactivated not be reactivated again. 0 = Factory Mode inactive 1 = Factory Mode active
